WARN Industries

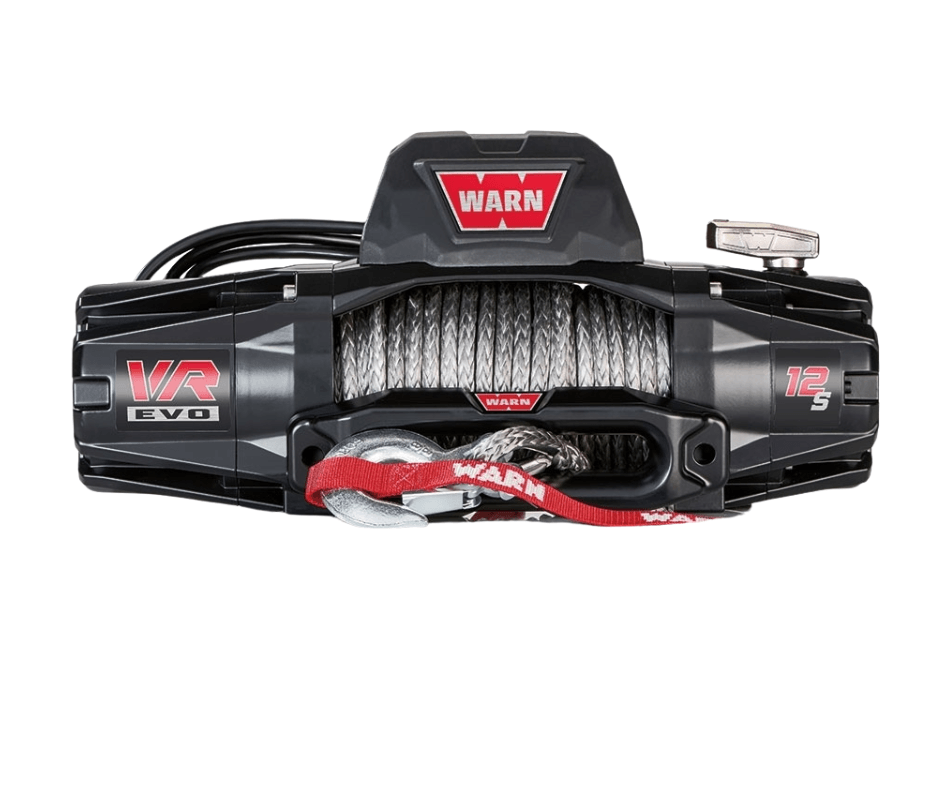

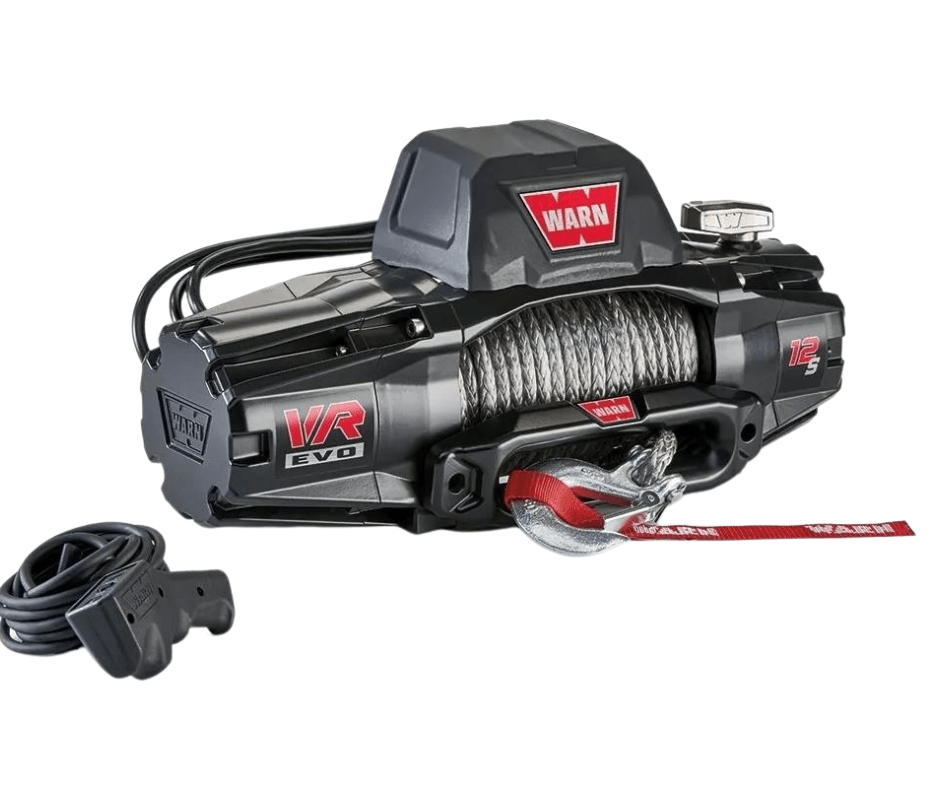

Warn VR EVO 12 000LB (5400KG) Winch 12V Synthetic Rope
Warn VR EVO 12 000LB (5400KG) Winch 12V Synthetic Rope
Couldn't load pickup availability
Warn VR EVO 12 000LB - Overview:
Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12-S features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
• IP68-rated waterproof winch construction keeps the elements out
• High-performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Durable, one-piece cast-aluminum tie-plate for added strength and durability
• Two-in-one remote with wired AND wireless options for ease of use and versatility
• Limited lifetime warranty for mechanical parts and 7 years on the electrical
Specifications:
| TYPE | Electric |
| RECOMMENDED USE | Vehicle Recovery |
| MOUNTING LOCATION | Vehicle Mounted |
| VOLTAGE | 12 Volt DC |
| ELECTRICAL CONTROL TYPE | Albright Contactor |
| MOTOR TYPE | Series Wound |
| DRIVE GEAR TYPE | 3-Stage Planetary |
| GEAR REDUCTION RATIO | 234:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Spring |
| LINE DIAMETER (IN) | 3/8 Inch |
| LINE MATERIAL | Synthetic |
| LENGTH (FT) | 90 |
| FAIRLEAD TYPE | Hawse |
| REMOTE TYPE | 2 in 1 plug in remote with wireless capability |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | Yes |
| COLOR | Black |
| DRUM MATERIAL | Steel |
| MAX LINE PULL/ LINE SPEED | 12,000 pounds / 4.0 feet per minute |
| MAX AMP DRAW/ LINE PULL | 396 Amps / 12,000 pounds |
