Hi-Lift
HI-LIFT JACK CAST & STEEL JACK (48")
HI-LIFT JACK CAST & STEEL JACK (48")
Couldn't load pickup availability

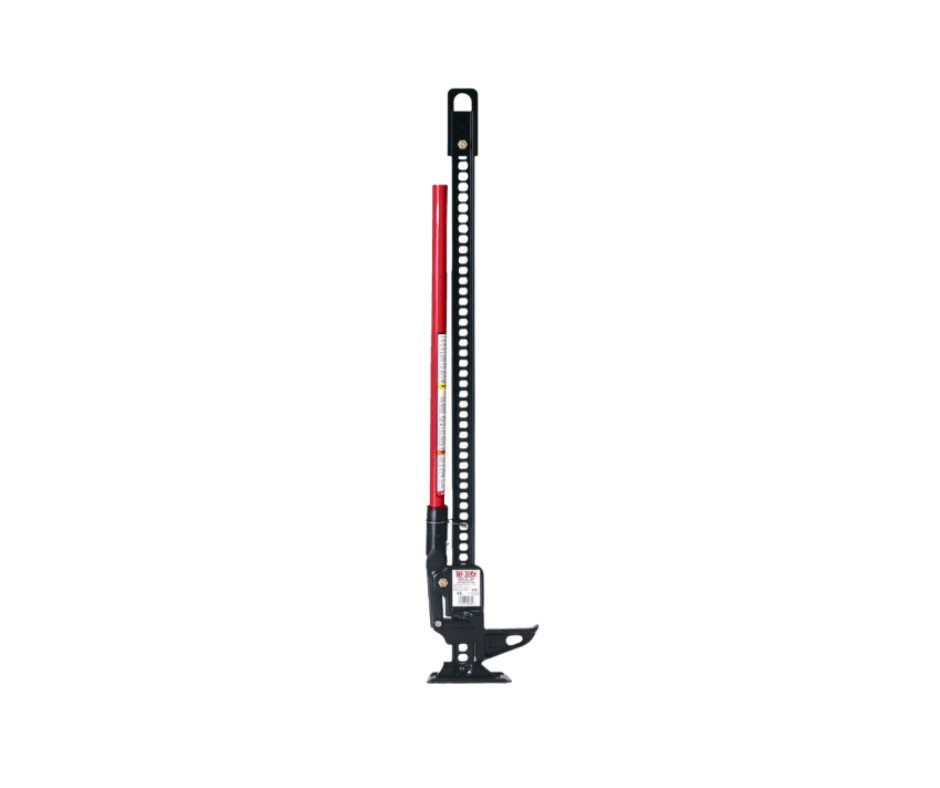

Hi-Lift® Cast/Steel Jack
The cast and steel jack is exactly the same as the all-cast jack except that it has four stamped high-strength steel parts. We stamp and form the parts in-house; which allows us to offer the jack at a lower price, yet we still maintain the rigid quality standards that every Hi-Lift product must meet.
- Made of Cast & Stamped Steel Parts.
- 7000lb (3175.14kg) Tested Capacity.
- Available in 36", 42", 48", & 60" Heights. (91, 107, 122, & 152cm)
- Lifts, Winches, Clamps, & More.
Specifications
|
HL-364 |
HL-424 |
HL-484 |
HL-604 |
|
|
Size |
36” (91 cm) |
42” (107 cm) |
48” (122 cm) |
60” (122 cm) |
|
Min. Lift Height |
4.5" (11.43 cm) |
4.5" (11.43 cm) |
4.5" (11.43 cm) |
4.5" (11.43 cm) |
|
Max. Lift Height |
27" (68.58 cm) |
32" (81.28 cm) |
37.24" (94.59 cm) |
48.25" (123.83 cm) |
|
Overall Height |
41" (104.14 cm) |
43.5" (110.49 cm) |
48.75" (123.83 cm) |
59.25" (150.5 cm) |
|
Width |
5" (12.7 cm) |
5" (12.7 cm) |
5" (12.7 cm) |
5" (12.7 cm) |
|
Depth |
9.63" (24.46 cm) |
9.63" (24.46 cm) |
9.63" (24.46 cm) |
9.63" (24.46 cm) |
|
Rated Load (RL) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
|
RL on upper 12" (30.5cm) |
- |
- |
- |
2,660 lbs (1206 kg) |
|
Tested Load (TL) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
|
TL on upper 12" (30.5cm) |
- |
- |
- |
4,000 lbs (1,814 kg) |
|
Winching Capacity |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
|
Clamping Capacity |
750 lbs (340 kg) |
750 lbs (340 kg) |
750 lbs (340 kg) |
750 lbs (340 kg) |
|
Weight |
25 lbs (11.35 kg) |
26.35 lbs (11.95 kg) |
27.66 lbs (12.55 kg) |
30.12 lbs (13.66 kg) |
