HI-LIFT JACK ALL CAST (42")
HI-LIFT JACK ALL CAST (42")
Couldn't load pickup availability

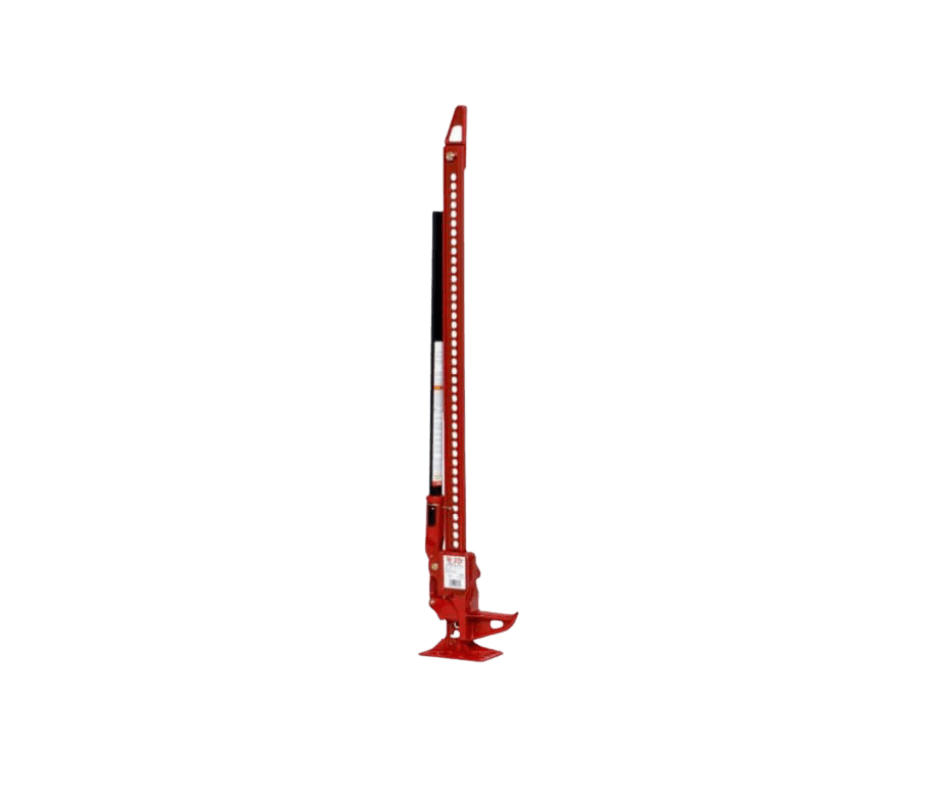

Hi-Lift® All-Cast Jack
The Hi-Lift Jack Company offers the only all-cast jack manufactured in the world today. Our casting jack is manufactured from high-yield and tensile-strength iron castings, the same durable metal that we have used for over 100 years.
- All-Cast Construction.
- 7000lb (3175.14kg) Tested Capacity.
- Available in 42", 48", & 60" Heights. (107, 122, & 152cm)
- Lifts, Winches, Clamps, & More.
- Most Durable Design.
Specifications
|
HL-425 |
HL-485 |
HL-605 |
|
|
Size |
42” (107 cm) |
48” (122 cm) |
60” (152 cm) |
|
Min. Lift Height |
4.5" (11.43 cm) |
4.5" (11.43 cm) |
4.5" (11.43 cm) |
|
Max. Lift Height |
34" (86.36 cm) |
38.63" (98.12 cm) |
49.75" (126.37 cm) |
|
Overall Height |
46" (116.84 cm) |
50.75" (128.91 cm) |
61.75" (156.85 cm) |
|
Width |
5" (12.7 cm) |
5" (12.7 cm) |
5" (12.7 cm) |
|
Depth |
9.63" (24.46 cm) |
9.63" (24.46 cm) |
9.63" (24.46 cm) |
|
Rated Load (RL) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
|
RL on upper 12" (30.5cm) |
- |
- |
2,660 lbs (1206 kg) |
|
Tested Load (TL) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
|
TL on upper 12" (30.5cm) |
- |
- |
4,000 lbs (1,814 kg) |
|
Winching Capacity |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
|
Clamping Capacity |
750 lbs (340 kg) |
750 lbs (340 kg) |
750 lbs (340 kg) |
|
Weight |
27.78 lbs (12.6 kg) |
28.16 lbs (12.77 kg) |
31.31 lbs (14.2 kg) |
