Rated Line Pull 9500lb (4309kg)
Motor Series Wound (12V) 6.4kW/8.6hp
Gear Train Full Steel 3 Stage Planetary
Gear Ratio 110:1 – Extra Low for Extra Speed
Brake Automatic Load-Holding Screw Cone
Steel Cable 9.2mm x 26.5m
Mounting Bolt Pattern 254mm x 114.3mm
Overall Dimensions 577mm x 163mm x 217mm
Remote Control 3.7m Handheld Remote/Wireless Remote
Battery Leads Included. 2 x 1.8m Heavy Duty Leads
Finish Grey Powder Coat
Net Weight 37.5kg
Gross Weight 39.5kg (includes packaging)
Warranty Limited Lifetime

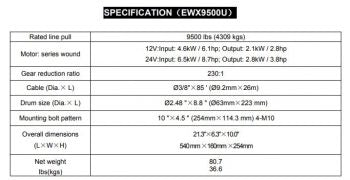

| Rated line pull | 9500 lbs (4309 kg) | ||
| Motor: series wound | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp |
||
| Gear reduction ratio | 230:1 | ||
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) | ||

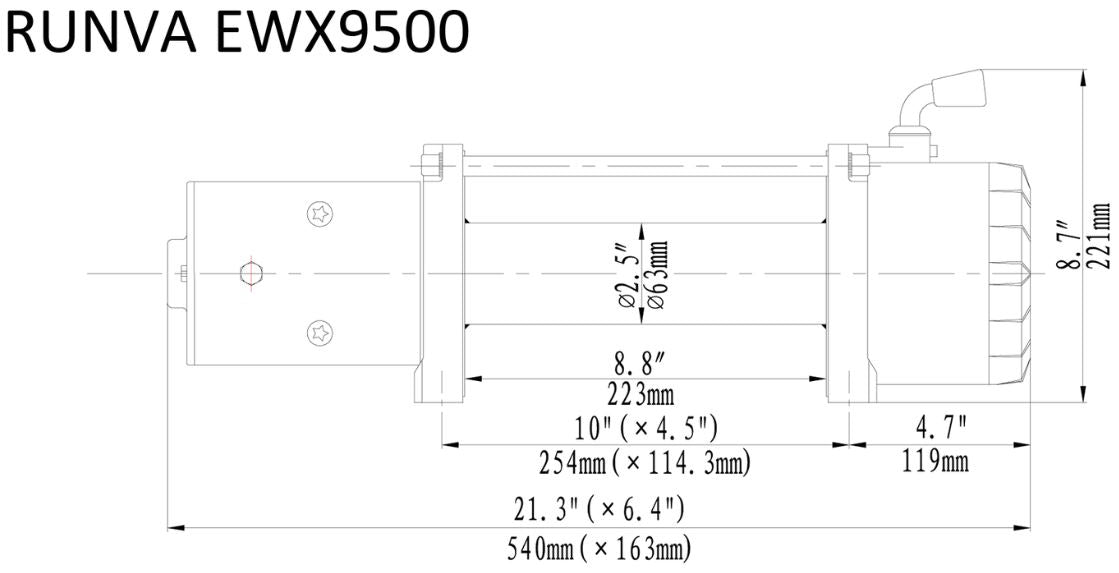

| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | ||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | ||

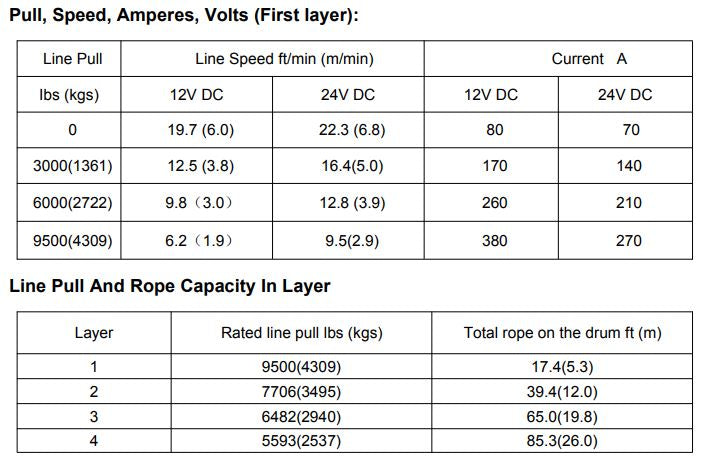

| Line Speed Amperes Volts First Layer | Line Pull and Rope Capacity in Layer Line Pull | ||||||
| Line Pull Ibs.(kg) | Line Speed ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs. (kg) | Total rope on the drum ft (m) | ||
| 12DC | 24DC | 12DC | 24DC | 1 | 9500(4309) | 17.4(5.3) | |
| 0 | 19.7 (6.0) | 22.3 (6.8) | 80 | 70 | 2 | 7706(3495) | 39.4(12.0) |
| 3000(1361) | 12.5 (3.8) | 16.4(5.0) | 170 | 140 | 3 | 6482(2940) | 65.0(19.8) |
| 6000(2722) | 9.8（3.0） | 12.8 (3.9) | 260 | 210 | 4 | 5593(2537) | 85.3(26.0) |
| 9500(4309) | 6.2（1.9） | 9.5(2.9) | 380 | 270 | |||
| Item | EWX9500U | EWX9500S | EWX9500F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.5″×9.9″ |
| (L×W×H) | 540 mm ×160mm ×254mm | 540mm ×160 mm ×283 mm | 540mm ×166mm ×251mm |
| Net weight (Ibs/kg) | 80.7lbs / 36.6kg | 81.7lbs / 37.1kg | 86.5lbs / 39.2kg |
