Rated Line Pull 1200lb (5443kg)
Motor Series Wound (24v) 5.3kW/7.1hp
Gear Train Full Steel 3 Stage Planetary
Gear Ratio 230:1
Brake Automatic Load-Holding Screw Cone
Steel Cable 10.2mm x 26.5m
Mounting Bolt Pattern 254mm x 114.3mm
Overall Dimensions 579mm x 163mm x 217mm
Remote Control 3.7m Handheld Remote/Wireless Remote
Battery Leads Included. 2 x 1.8m Heavy Duty Leads
Finish Grey Powder Coat
| Rated line pull | 12000 lbs (5443 kg) | ||
| Motor: series wound | 12V:Input: 5.4 kW / 7.2hp; Output: 2.7kW / 3.6hp 24V:Input: 5.3 kW / 7.1hp; Output: 3.3 kW /4.4hp |
||
| Gear reduction ratio | 230:1 | ||
| Cable (Dia.× L) | Ø13/32 “×83.7 ‘ (Ø10.2mm×25.5m) | ||
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) | ||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | ||

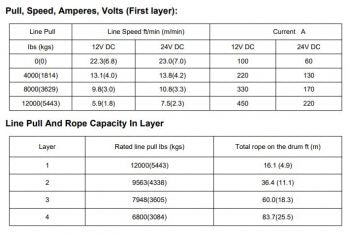

| Line Speed Amperes Volts First Layer | Line Pull and Rope Capacity in Layer Line Pull | ||||||
| Line Pull Ibs.(kg) | Line Speed ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs. (kg) | Total rope on the drum ft (m) | ||
| 12DC | 24DC | 12DC | 24DC | 1 | 12000(5443) | 16.1 (4.9) | |
| 0(0) | 22.3(6.8) | 23.0(7.0) | 100 | 60 | 2 | 9563(4338) | 36.4 (11.1) |
| 4000(1814) | 13.1(4.0) | 13.8(4.2) | 220 | 130 | 3 | 7948(3605) | 60.0(18.3) |
| 8000(3629) | 9.8(3.0) | 10.8(3.3) | 330 | 170 | 4 | 6800(3084) | 83.7(25.5) |
| 12000(5443) | 5.8(1.8) | 7.5(2.3) | 450 | 220 | |||
| Item | EWX12000U | EWX12000S | EWX12000F |
| Overall dimensions | 22.8″×6.3″×10.0″ | 22.8″×6.3″×11.1″ | 23.2″×6.5″×9.9″ |
| (L×W×H) | 579 mm ×160mm ×254mm | 579mm ×160 mm ×283 mm | 589mm ×166mm ×251mm |
| Net weight (Ibs/kg) | 92.6lbs / 42.0kg | 93.3lbs / 42.3kg | 96.6lbs / 43.8kg |
