Warn VR EVO 12 000LB (5400KG) Winch 12V Steel Cable + Synthetic Rope and Fairlead
Warn VR EVO 12 000LB (5400KG) Winch 12V Steel Cable + Synthetic Rope and Fairlead
Couldn't load pickup availability

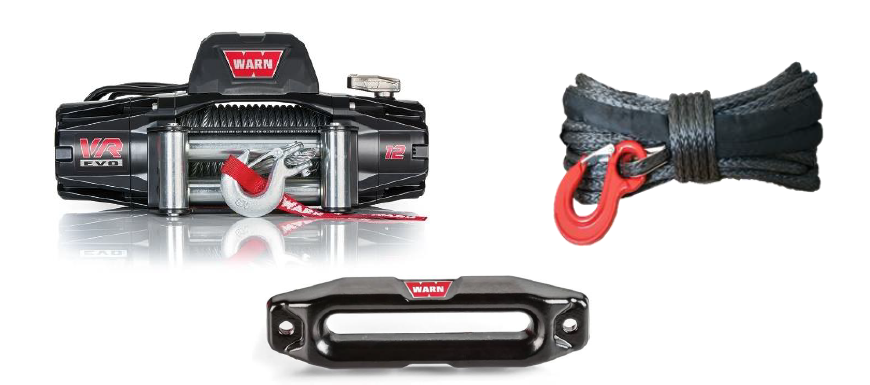

Special Combo Deal - Winch + Synthetic Rope + Black Hawse Fairlead
Warn VR EVO 12 000LB - Overview:
Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12 features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
• IP68-rated waterproof winch construction keeps the elements out
• High-performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Durable, one-piece cast-aluminum tie-plate for added strength and durability
• Two-in-one remote with wired AND wireless options for ease of use and versatility
• Limited lifetime warranty for mechanical parts and 7 years on the electrical
Specifications:
| TYPE | Electric |
| RECOMMENDED USE | Vehicle Recovery |
| MOUNTING LOCATION | Vehicle Mounted |
| VOLTAGE | 12 Volt DC |
| ELECTRICAL CONTROL TYPE | Albright Contactor |
| MOTOR TYPE | Series Wound |
| DRIVE GEAR TYPE | 3-Stage Planetary |
| GEAR REDUCTION RATIO | 234:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Spring |
| LINE DIAMETER (IN) | 3/8 Inch |
| LINE LENGTH (FT) | 85 |
| LINE MATERIAL | Steel |
| FAIRLEAD TYPE | Roller |
| REMOTE TYPE | 2 in 1 plug in remote with wireless capability |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | Yes |
| COLOR | Black |
| DRUM MATERIAL | Steel |
| MAX LINE PULL/ LINE SPEED | 12,000 pounds / 4.0 feet per minute |
| MAX AMP DRAW/ LINE PULL | 396 Amps / 12,000 pounds |
