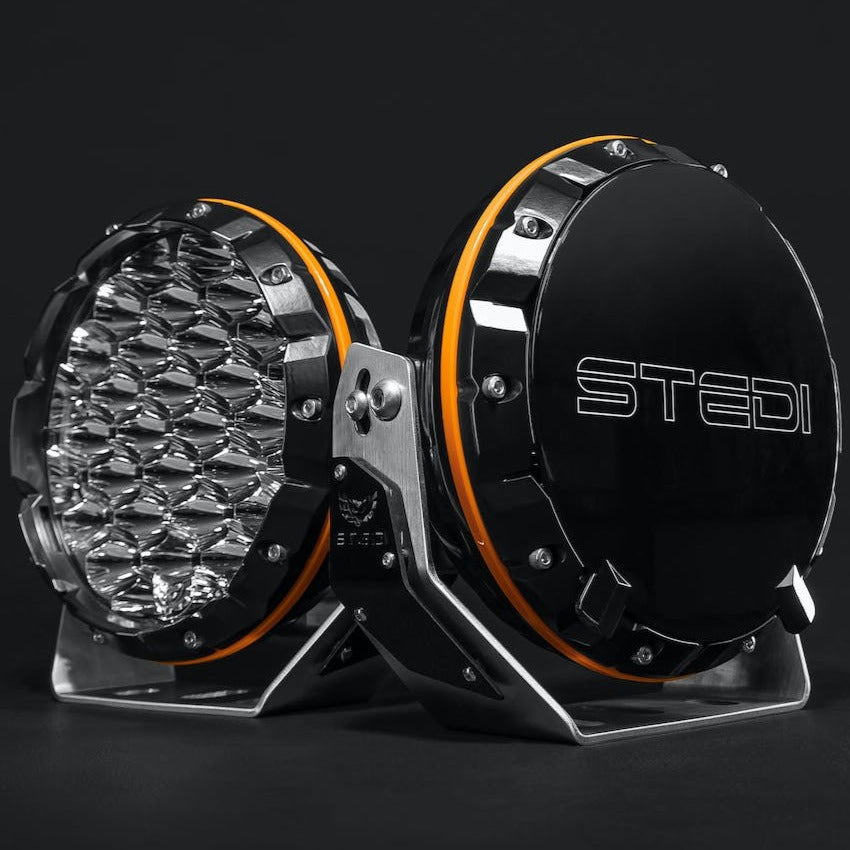

STEDI 8.5" TYPE X SPORT LED SPOTLIGHT (PAIR)
STEDI 8.5" TYPE X SPORT LED SPOTLIGHT (PAIR)
Couldn't load pickup availability
HIGH PERFORMANCE - ACCESSIBLE PRICE
We welcome the Type-X™ Sport into the STEDI™ bloodline; our most affordable driving light yet. The goal of STEDI™ is to offer high-performance, high-quality driving lights at accessible prices. Compare the build quality, performance, and list of inclusions with other offerings on the market and you will conclude that our Type-X™ Sport is peerless.
LEGENDARY TYPE-X DNA
The Type-X™ Sport has adopted a lot of the Type-X™ DNA, but we’ve increased the depth of the optics by 35%, allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw, sending light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light in the nearfield and transition beautifully with the spot beam.
STEDI™ DESIGN LANGUAGE

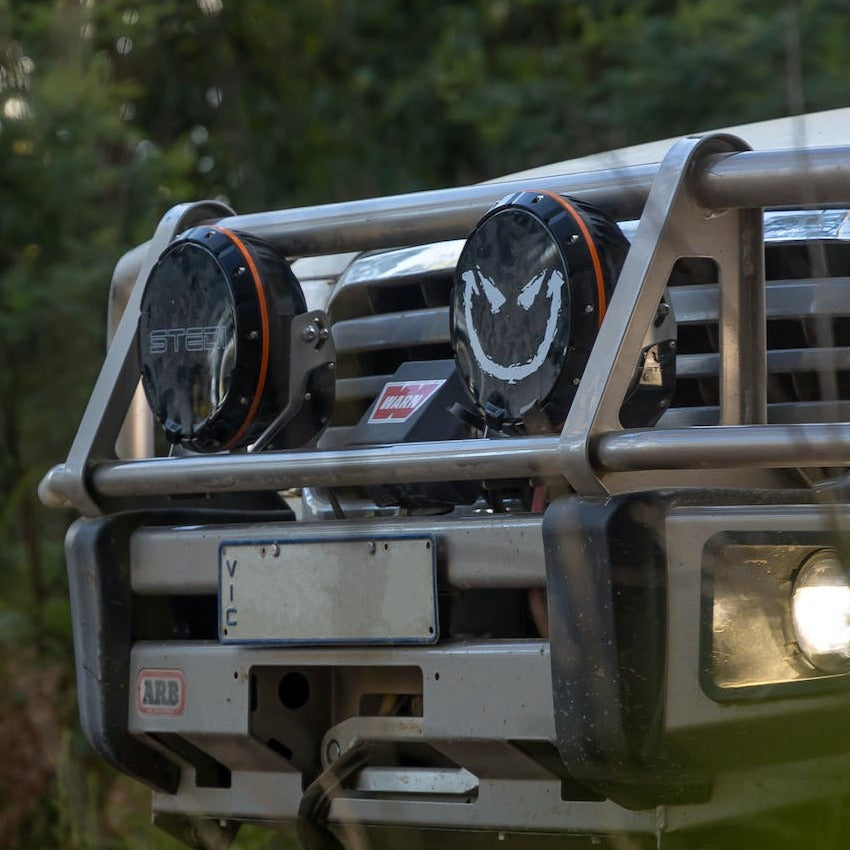

Some people call it the little things; for us, it is literally everything. We have obsessed over the most trivial geometries and design elements to achieve a visually stunning luminaire. The accompanying brackets (with the laser-cut STEDI™ branding) will allow the Type-X™ Sport to be mounted on a range of locations on your vehicle.
THE DETAILS

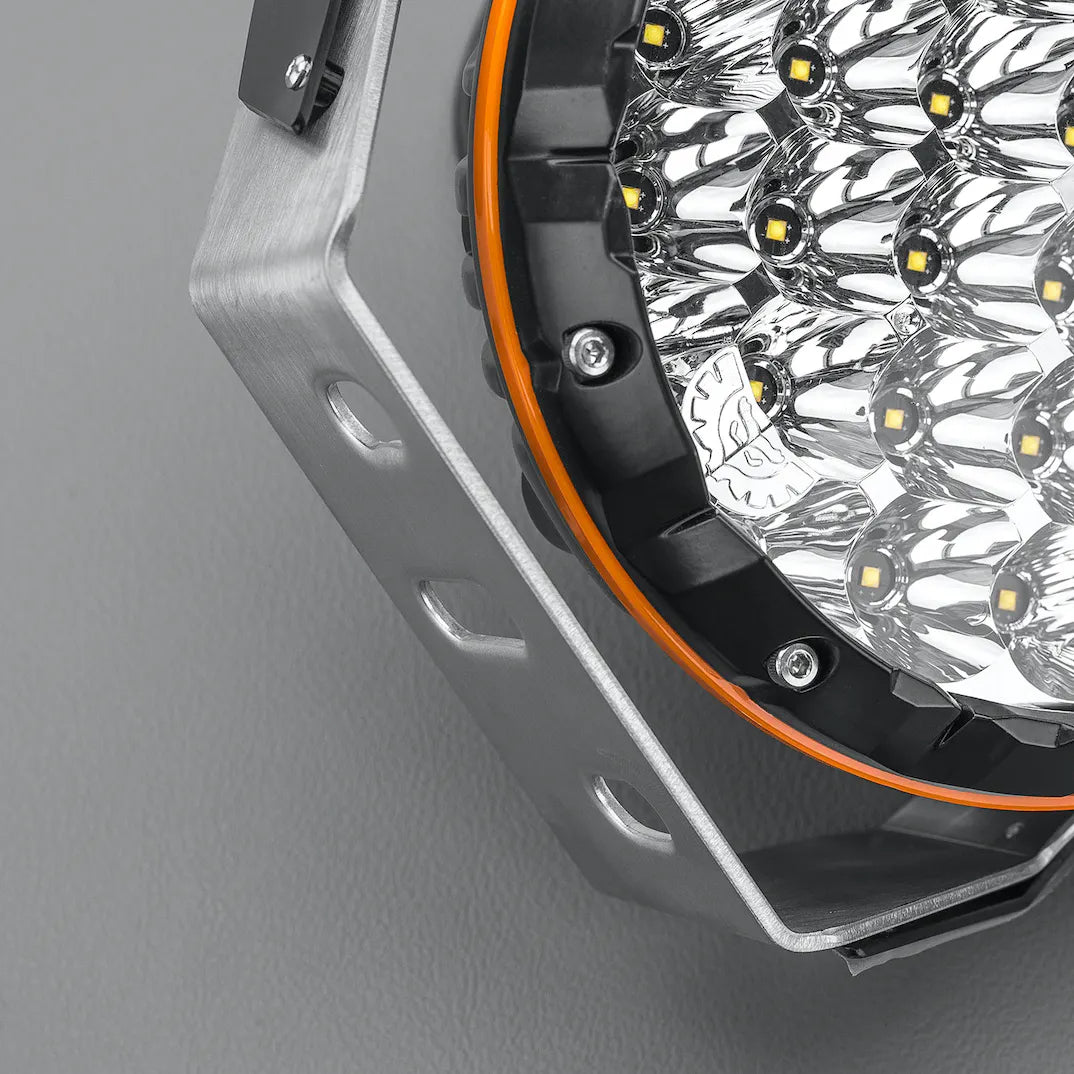

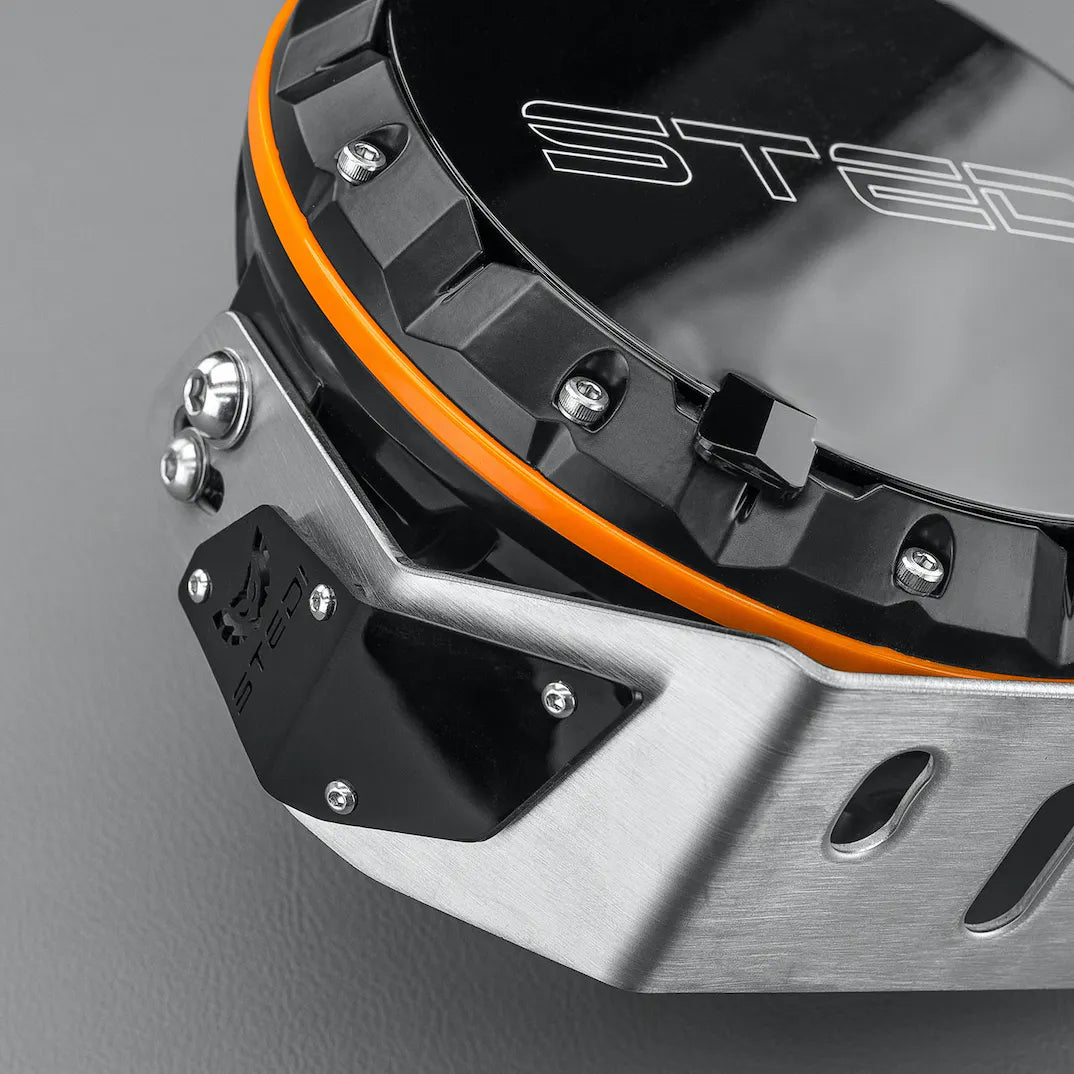

- 4mm thick 304 Series Stainless Mounting bracket, which includes a rubber dampener and an additional 3mm upper plate.

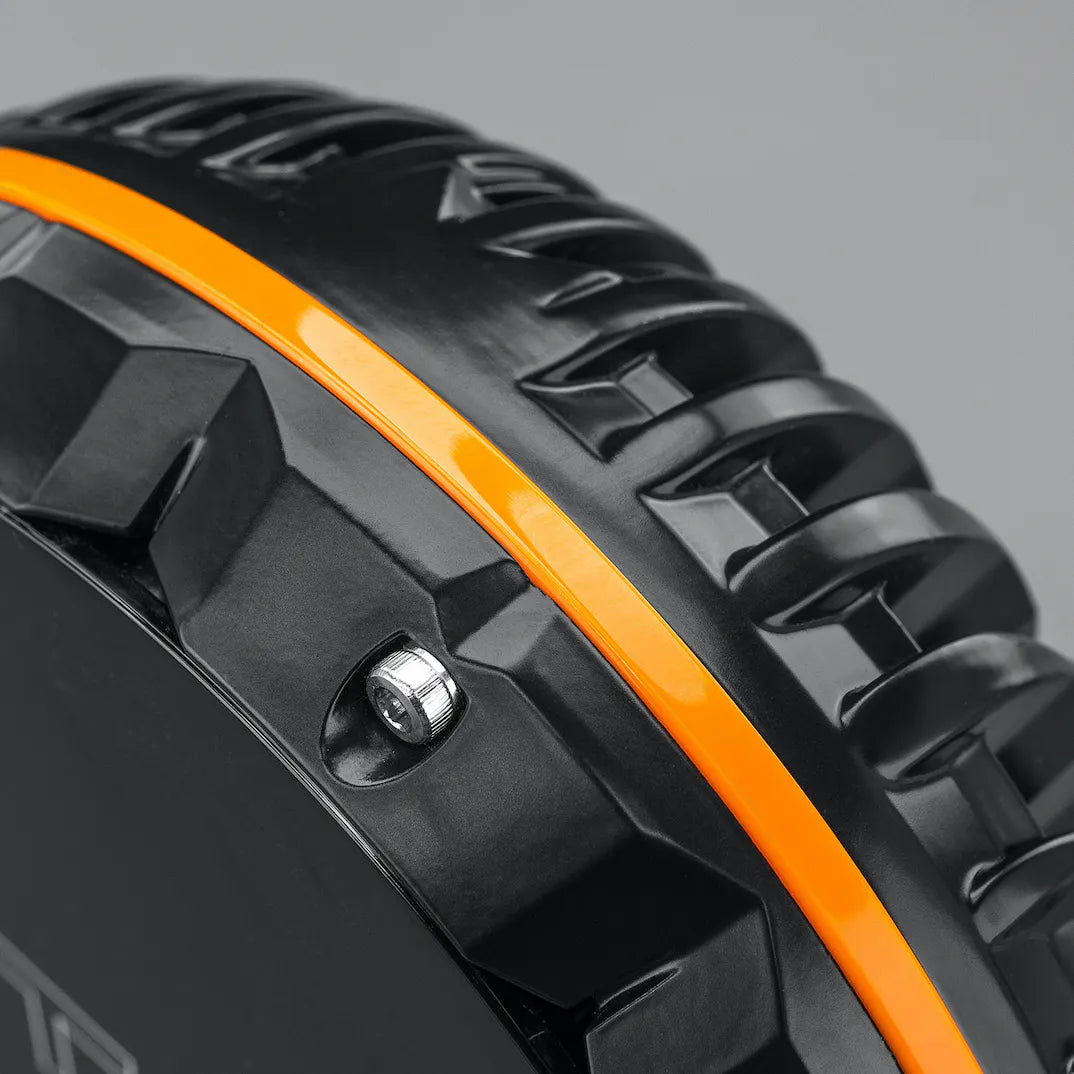

- A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
- 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable scratch-resistant
- 100% Polyester UV and abrasion-resistant powder coat
- IP68 | Dust & Particle tight + Waterproof up to 3 meters

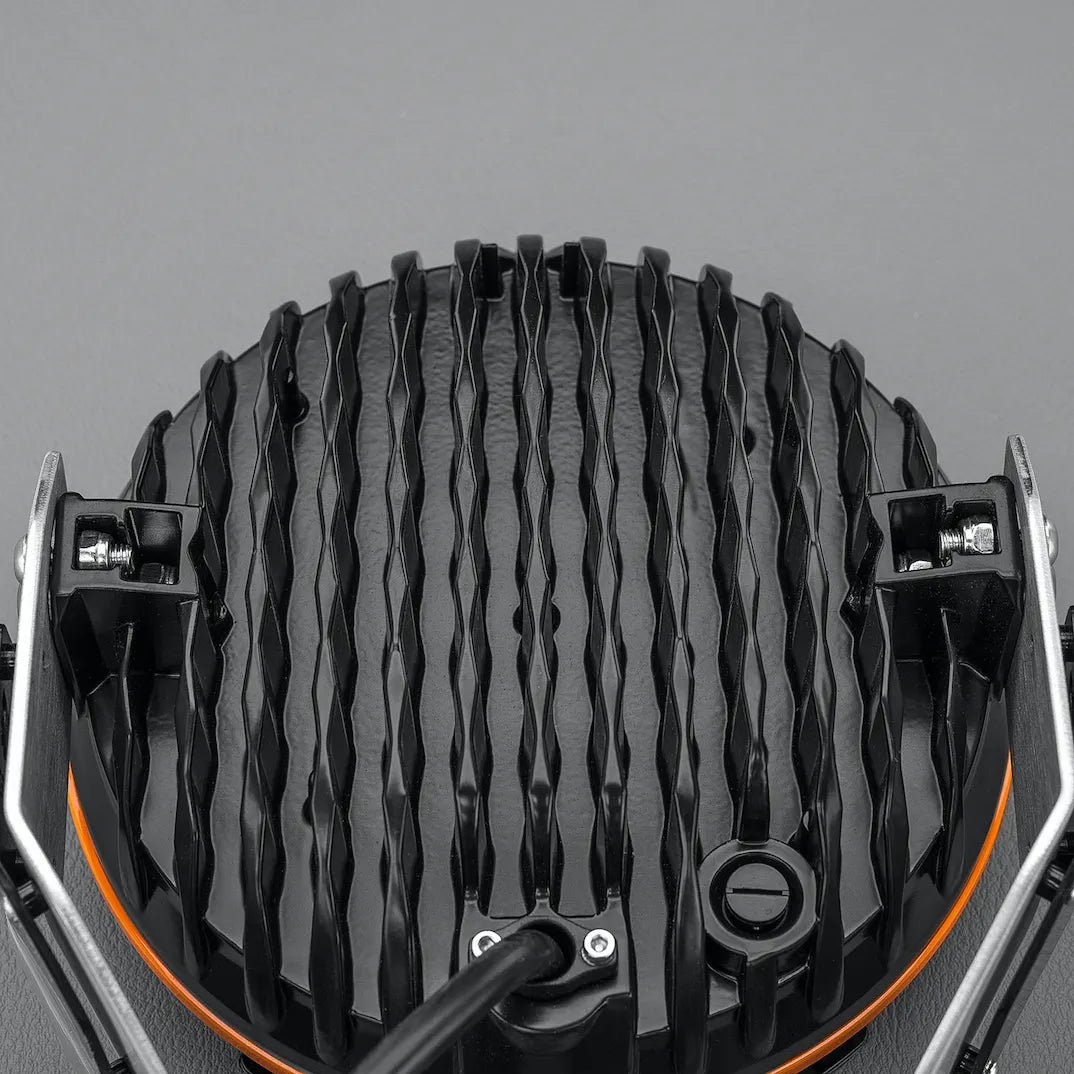

- Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
- Environmentally Sealed Deutsch® DTP-2 connector
- EMI & RFI Suppression circuitry – We guarantee it.
- Each TYPE-X Sport comprises of 36 OSRAMs OSLON LEDs, selected for its high luminous flux and perfectly matches optical properties.
- Four wide-beam reflectors are built, which form a lateral-shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide beam covers, for environments demanding an increased peripheral vision.
- 5700K CCT offers stunning clarity and definition with an excellent Colour Rendering Index (CRI)
TECH SPECS
LED | 36 x Osram Oslon SSL |
RAW LUMENS | 20,780 (Pair) |
TESTED LUMENS | 14,950 (Pair) |
AMP DRAW | 9.8A @ 13.2v (each) |
POWER DRAW | 129W |
CANDELA | 1,102,500cd |
BEAM PATTERN | 4 x Spread 32 x Spot Beam |
INGRESS PROTECTION | IP68 | Submersible up to 3m |
COLOUR TEMP (CCT) | 5700K |
VOLTAGE COMPATIBILITY | 12v & 24v |
LUMEN MAINTENANCE | 50,000 LM-80 |
WEIGHT | 3.35kg (each) |
OPERATING TEMP | -40°C - 60°C |

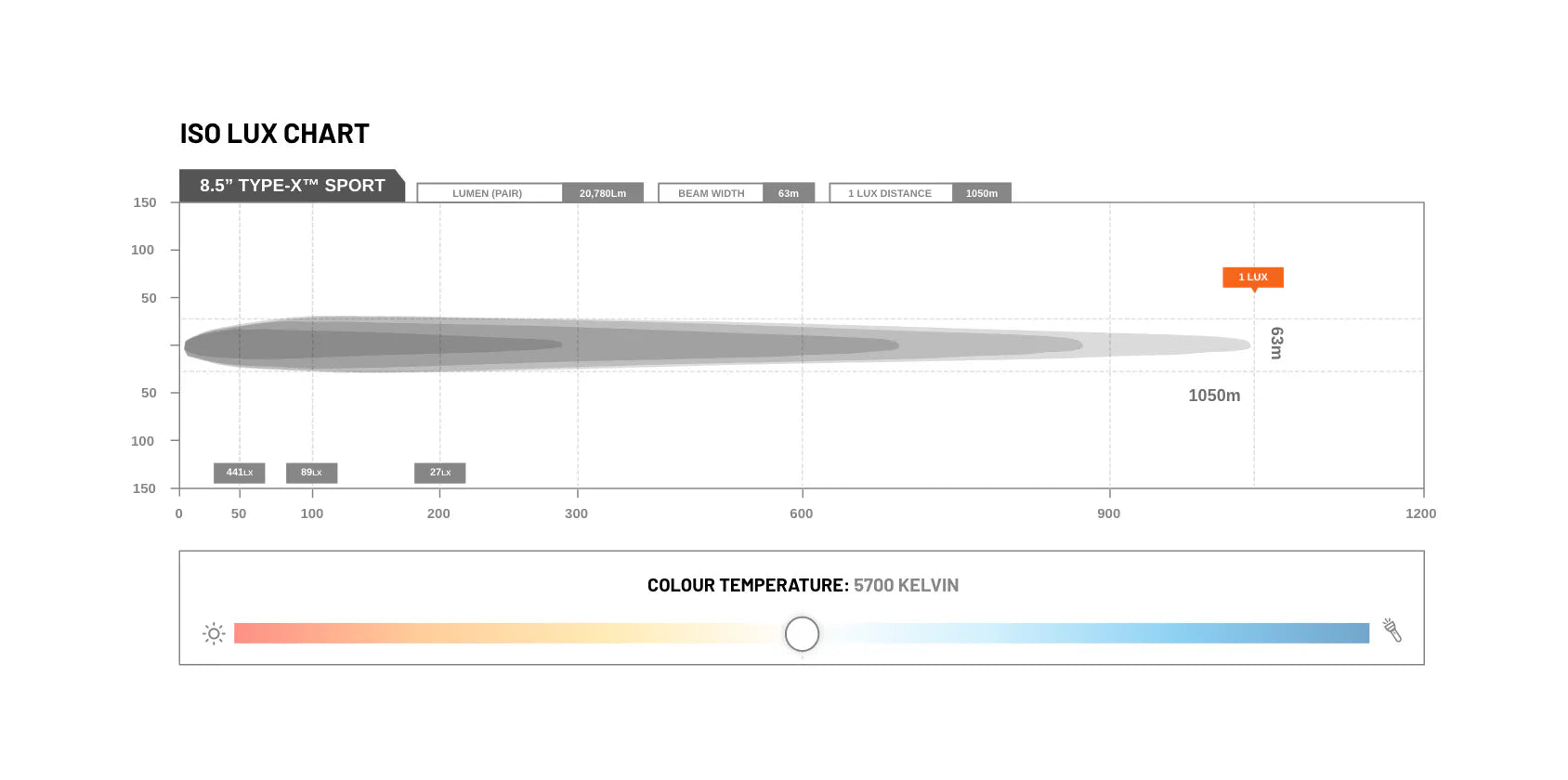

PHOTOMETRIC DATA | |
10 m | 11,025 Lx |
50 m | 441 Lx |
200 m | 27 Lx |
300 m | 12 Lx |
400 m | 6 Lx |
1,000 m | 1.1 Lx |
1,050 m | 1 Lx |
