Stedi

STEDI 7" TYPE X SPORT LED SPOTLIGHT SET

STEDI 7" TYPE X SPORT LED SPOTLIGHT SET

Regular price R 11,499.00
Regular price Sale price R 11,499.00
Sale Sold out
Tax included. Shipping calculated at checkout.

STEDI 7" TYPE X SPORT LED SPOTLIGHT SET

THE DETAILS

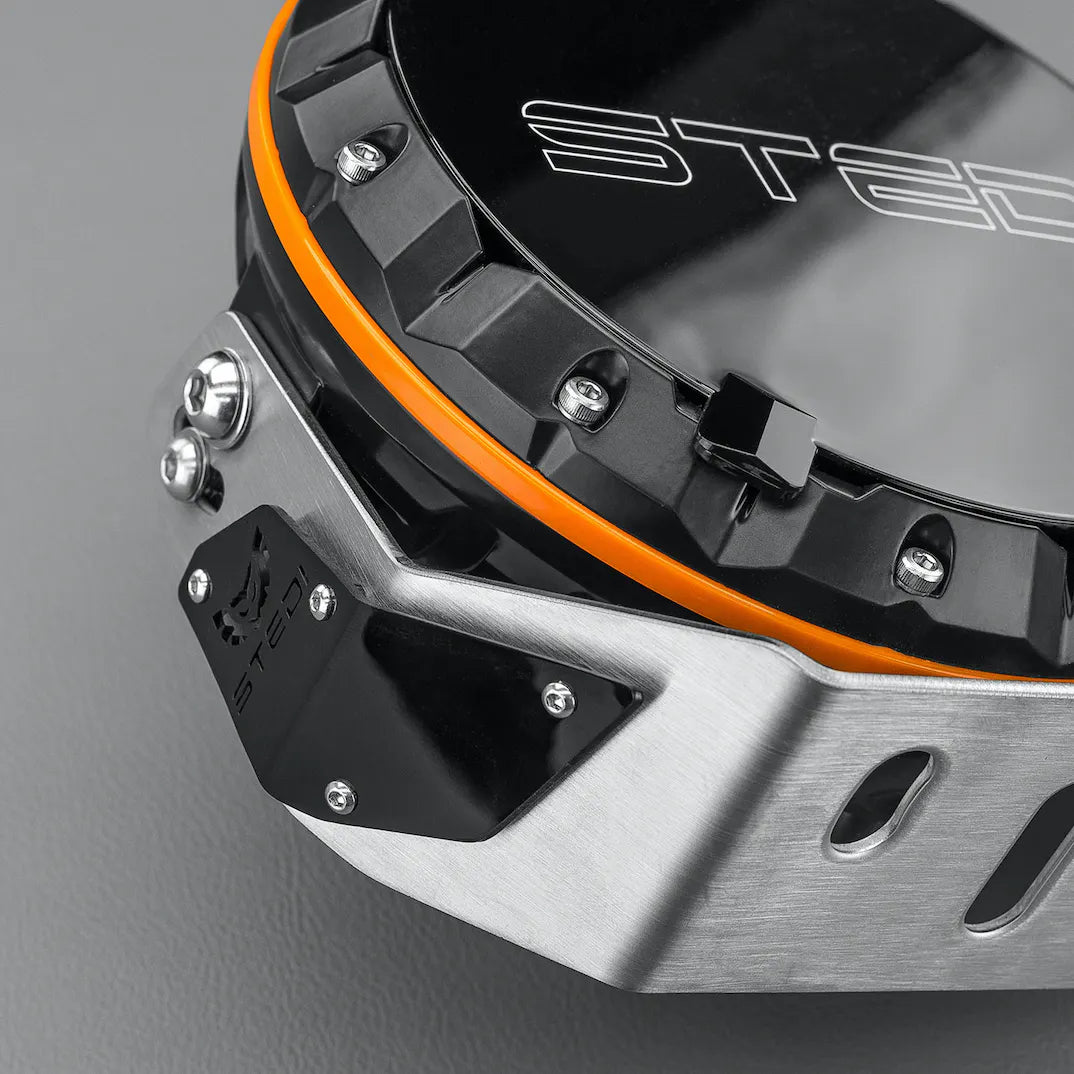

  • 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
  • A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
  • 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
  • 100% Polyester UV and abrasion resistant powder coat
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters
  • Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust and contaminants.

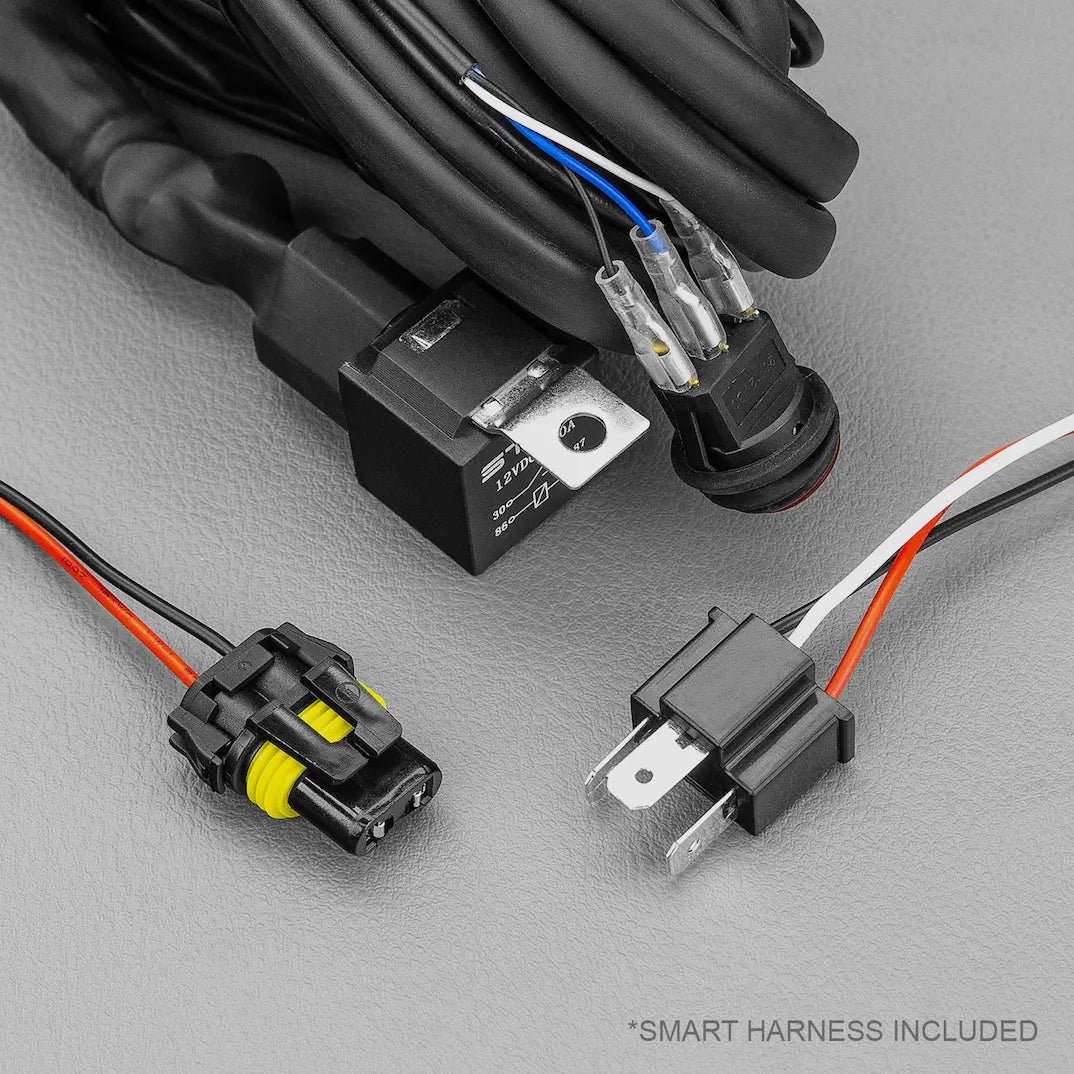

  • Environmentally Sealed Deutsch DT-2 connector
  • EMI RFI Suppression circuitry - We guarantee it.
  • Each 7" TYPE-X Sport comprises 32 of OSRAM's OSLON LEDs, selected for its high luminous flux and perfectly matches optical properties.

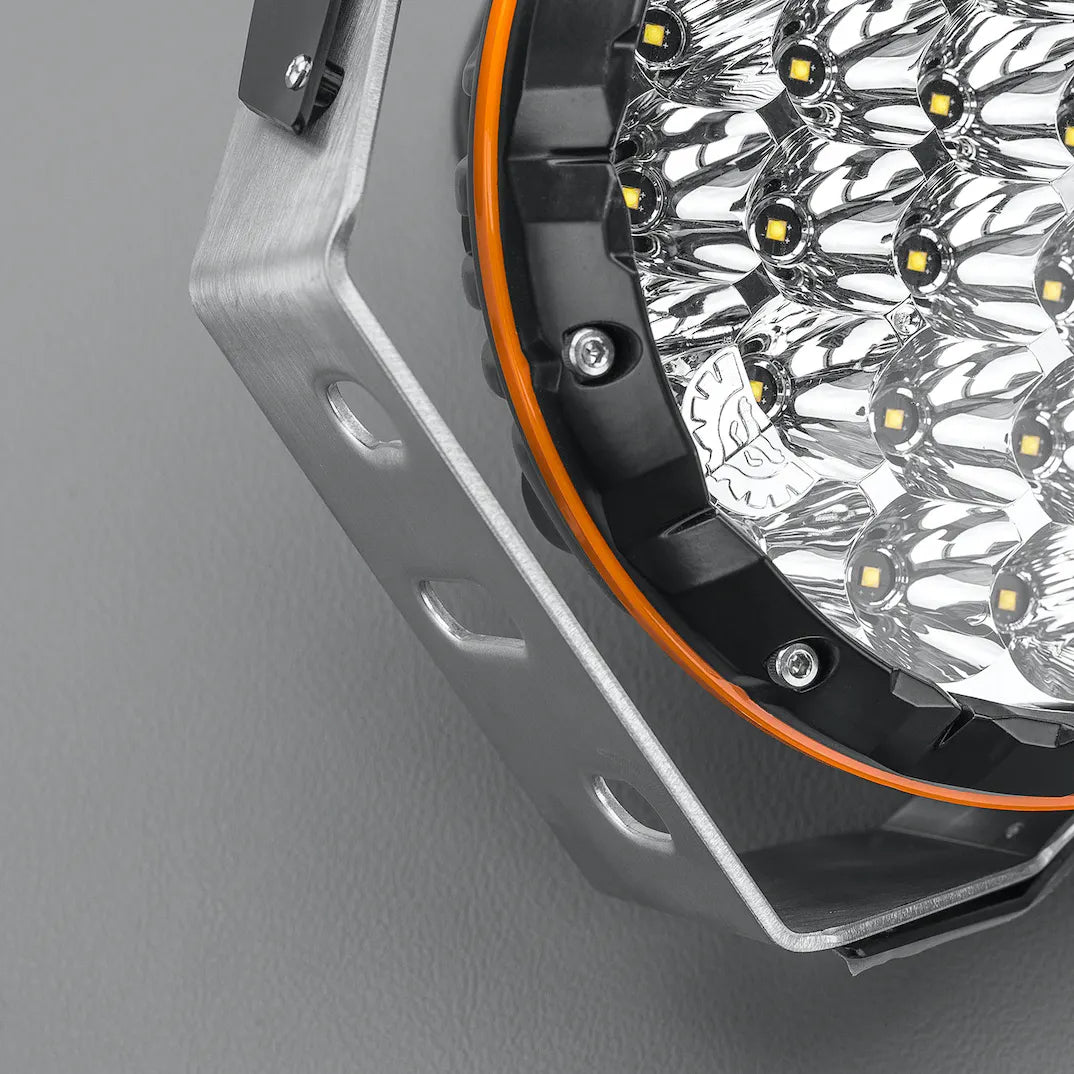

  • 4 wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky.
  • 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)

Warranty: 5 Years

TECH SPECS

LED 32 x Osram Olson SSL
RAW LUMENS 16,640 (Pair)
TESTED LUMENS 12,820 (Pair)
AMP DRAW 6.4A @ 13.2v (each)
POWER DRAW 85W (each)
CANDELA 819,200cd
BEAM PATTERN 4 x Spread 28 x Spot Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5700K
VOLTAGE COMPATIBILITY 12v & 24v
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 2.250kg (each)
OPERATING TEMP -40°C - 60°C
PHOTOMETRIC DATA
10 m 8,129 Lx
50 m 327 Lx
200 m 20 Lx
300 m 9 Lx
400 m 5 Lx
895 m 1 Lx
