| Rated line pull | 4500 lbs (2041 kg) | ||
| Motor: permanent magnet | 12V:Input: 2.4 kW/ 3.2hp; Output: 1.0 kW/ 1.3hp 24V:Input: 2.9 kW / 3.9hp; Output: 1.3kW / 1.7hp |
||
| Gear reduction ratio | 172:1 | ||
| Cable (Dia.× L) | Ø15/64″×47.6′ (Ø 6.0mm×14.5m) | ||
| Drum size (Dia.× L) | Ø1.77″×3.8″ (Ø 45mm×93 mm) | ||
| Mounting bolt pattern | 5.1″×3.78″ ( 129mm×96 mm) 4-M8 | ||
Runva Winch Industries

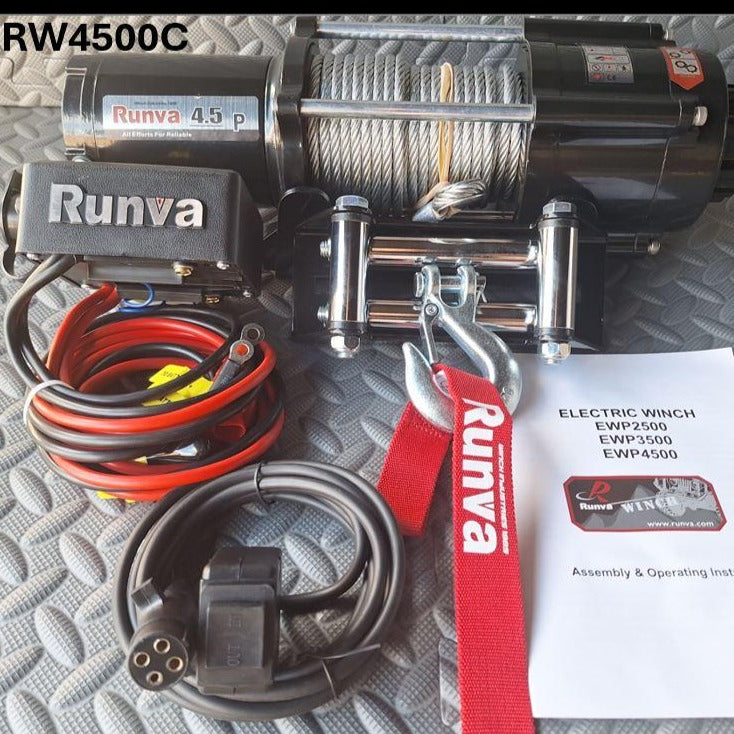

RUNVA WINCH - Steel Cable 4500lbs (2 041Kg) 12V
RUNVA WINCH - Steel Cable 4500lbs (2 041Kg) 12V
Regular price
R 4,295.00
Regular price
Sale price
R 4,295.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
RUNVA WINCH - Steel Cable 4500lbs (2 041Kg) 12V
Features:
- Full steel gear
- Runva patent three-stage planetary gear reducer
- Sliding geared ring clutch
- Automatic screw cone braking action
- Remote control through the control box and switch
Specification:
| Line Speed Amperes Volts First Layer | Line Pull and Rope Capacity in Layer Line Pull | ||||||
| Line Pull Ibs.(kg) | Line Speed ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs. (kg) | Total rope on the drum ft (m) | ||
| 12DC | 24DC | 12DC | 24DC | 1 | 4500(2041) | 7.6(2.3) | |
| 0 | 11.6(3.6) | 12.5(3.8) | 20 | 15 | 2 | 3642(1652) | 17.0(5.2) |
| 1500(680) | 9.2(2.8) | 10.5(3.2) | 70 | 40 | 3 | 3060(1388) | 27.0(8.3) |
| 2500(1134) | 7.8 (2.4) | 8.5(2.6) | 100 | 65 | 4 | 2638(1197) | 38.6(11.8) |
| 3500(1588) | 6.6(2.0) | 7.2(2.2) | 140 | 80 | 5 | 2254(1022) | 47.6(14.5) |
| 4500(2041) | 4.9(1.5) | 5.9(1.8) | 200 | 130 | |||
| Item | EWX4500A | EWX4500U |
| Overall dimensions | 14.9″×5.0″×6.5″ | 14.9″×5.0″×6.5″ |
| (L×W×H) | 378mm ×126mm ×165mm | 378mm ×126mm ×165mm |
| Net weight (Ibs/kg) | 28.9Ibs / 13.1kg | 28.7Ibs / 13.0kg |
